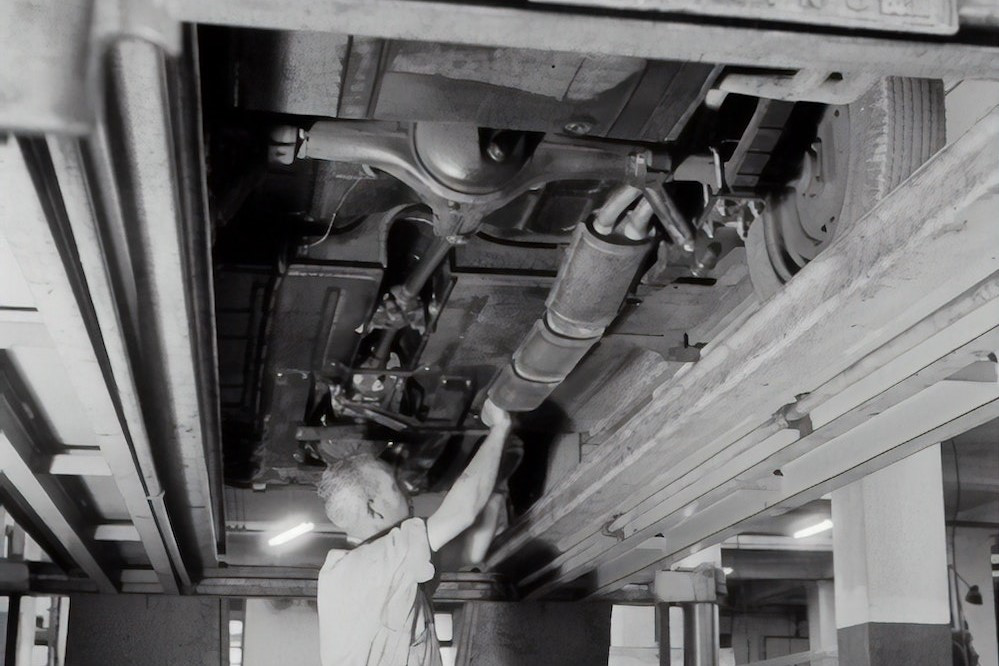

What Exactly Is a Transfer Case Control Module?

The transfer case control module coordinates the shift motor to ensure the vehicle is in the proper gear for driving conditions.

If there is a problem with the transfer case control module, it could cause problems with shifting gears.

The transfer case control module is responsible for controlling the power flow between the front and rear axles. It receives input from the engine and transmission, and sends commands to other components in the four-wheel-drive system.

The control module monitors various system functions and reports any issues to the driver. When problems occur, they can often be attributed to a failed or malfunctioning transfer case control module.

If the four-wheel-drive system is not functional, it will need to be replaced in order for the vehicle to operate correctly.

What’s An Transfer Case Shift Motor?

The transfer case shift motor helps to shift the gears in the transfer case. It is an electric motor that is controlled by the transfer case control module. When the vehicle is placed in drive, the control module sends a signal to the shift motor telling it to engage whichever gear is needed.

The shift motor is located on the outside of the transfer case and it is connected to the control module by a series of wires. If there is a problem with the shift motor, it can often be diagnosed by checking for power at the connector that connects it to the control module.

If the car does not start or there is a low voltage, it may be indicative of a problem with either the fuse or power sources to the shift motor.

What are the symptoms of a bad transfer case motor?

Transfer cases are meant to last the life of a vehicle, but that doesn’t always happen. Here are some common signs you may encounter when your transfer case is in need of repair:

When your transfer case starts making weird noises or begins to show signs of wear and tear, it might be time for a replacement. Check the manufacturer’s guide for specific symptoms to look out for, and then take your car into an authorized dealer or mechanic for inspection.

Problems with Gear Shifting

A sign that your transfer case is in trouble is when you have difficulty shifting between gears. This can be caused by something simple, such as a low fluid level or damaged linkage, but indicates an internal failure of the transfer case.

One way to check whether the transfer case is in neutral is to stop the car and place it into neutral.

Transfer cases are typically controlled by the vehicle’s body computer, but on most modern vehicles they are electrically-switched. This means that some vehicles may exhibit different symptoms depending on which transfer case is being used.

Difficulty Maintaining 4WD

A common issue with 4WD systems is a transfer case that pops out of gear. This can be due to outside influences (such as a problem with the differential or driveshaft) or it might be an indication that something is wrong with the transfer case itself.

4WD Won’t Engage or Disengage

There are many reasons why a vehicle’s 4WD system might not work. One possibility is that there is a problem with the gear shift mechanism on the front axle, while another could be an electrical issue in the control system.

If the transfer case has an internal problem, the vehicle may not shift properly.

If you are experiencing problems with your vehicle’s transmission, there is a good chance that an internal problem with your transfer case is to blame.

4wd vehicle button — You may have a faulty transfer case if you’re having difficulty staying in 4WD or your your 4WD system won’t engage/disengage.

Formation of a Puddle Directly Under the Transfer Case

If you notice a greasy puddle accumulating underneath your car, there could be a leak in the transfer case.

If you suspect that your car’s transmission or transaxle assembly has been leaking, you can easily confirm this by jacking up your car and visually inspecting it.

READ: How To Sign Up For Overhaulin?

Leaks can be gradual or sudden, but over time, a leak in a transfer case can cause damage to internal components. This takes longer to show up in a manual transmission because they don’t have an oil pump.

Strange Grinding, Growling, or Humming Sounds

One indicator of a problem with your car is the presence of unusual noises. These noises can be disruptive and often point to even bigger problems down the road.

If you hear a grinding, growling, or humming noise that changes with vehicle speed, it might be coming from the transfer case. The root cause could be a low fluid level or a mechanical problem, such as a loose chain, bad bearings, or damaged gears.

A chain that is often loose on a transfer case can cause damage to the case and necessitate a repair. A rebuild kit for transfer cases includes a new chain, so it is important to get this done by an expert rather than attempting to do it yourself.

Noises are illuminated by the 4WD Warning Light.

Some vehicles have a message that pops up on the dashboard when there is a problem with the system. Other vehicles will simply keep the 4WD light illuminated to indicate a problem, which could be an indicator of a bad transfer case.

What Could Be the Causes of a Bad Transfer Case?

A transfer case, which is a transmission component that helps to distribute power from the engine to the wheels, can fail if it has low fluid levels or doesn’t get regular maintenance.

It is very important to address fluid leaks as soon as you discover them, in order to prevent internal transfer case damage. Fluid replacement intervals are also important for your vehicle’s transfer case. You can find the service interval for your vehicle’s transfer case in its owner’s manual.

Is it a bad transfer case or a transmission issue?

Your vehicle’s transmission and transfer case are both important parts of the drivetrain. However, if one of these components fails, it can cause similar symptoms to those caused by a bad transfer case. This can sometimes lead to confusion for car owners who are trying to fix their vehicle themselves.

If you are experiencing difficulty with your vehicle’s transfer case, it is a good idea to have a professional diagnose the issue. They will have access to the proper tools and experience to better assess your vehicle’s condition and potential solutions.

If your car has a bad four-wheel-drive locking hubs, it may also have a problem with the front differential. If this occurs, the hub could damage the differential and result in loss of traction.

The point is that a blown fuse can cause the Powertrain Control Module to use a different shift schedule, causing it to shift through all its gears at very low speeds.

Can a faulty transfer case harm the transmission?

When a catastrophic transfer case failure happens, it can damage other parts of your vehicle, including the transmission. It’s important to address any known issues with your vehicle as soon as possible to avoid further problems.

Ford has issued a dealer program concerning electronic modules that may cause the vehicle to randomly engage in four-wheel drive at highway speeds, leading to destruction. If you have a Ford truck with this issue, please check your VIN at your local dealership for more information.

What exactly is a Transfer Case?

The transfer case is a key part of vehicles with AWD or 4WD capability, allowing drivers to change between these modes of operation.

Transfer Case with 4WD

A 4WD transfer case is typically located at the rear of a transmission. It’s powered by the transmission output shaft and operates much like a secondary transmission.

Four-wheel drive (4WD) systems can be divided into two categories: two-high and four-low. In a 2WD system, the front and rear wheels are always spinning together, providing stability in all terrains. In a 4WD system, the driver only engages the 4WD when needed – for example, during off-road conditions or when descending steep hills. This type of system is called “part time” because it is only activated part of the time.

Engaging the desired gear range with a lever, engine vacuum, or onboard electronics can achieve the desired output.

Transfer Case for AWD

All-wheel drive (AWD) systems distribute power to all four wheels without relying on the driver. This design is common in many modern SUVs, with a front-wheel drive bias.

READ: What Color Is Universal Antifreeze?

The transfer case sits on the side of the transaxle and distributes power to the rear differential and one of the front drive axles.

The viscous coupling between the transmission and the drive shaft allows for full time four wheel drive on certain models of vehicles.

The part-time four-wheel drive system experiences “driveline windup” when operated on a flat, dry surface with the four wheel drive engaged.

There are some vehicles that have AWD and a rear-wheel drive layout. With this design, the transfer case is much like one found in a 4WD vehicle. The primary difference is that the transfer case doesn’t have multiple gear ranges for the driver to choose from (operation is automatic).

This type of setup can be a great way to have full-time 4WD capability.

There are various types of four-wheel drive systems that can be activated automatically when needed and which the driver cannot control.

How can I tell if my transfer case control module is faulty?

If you are experiencing a warning or light on your dashboard, it is likely that your TCCM is not functioning properly. If the transfer case module fails, there will be no power to shift the vehicle’s transmission. In addition to this, there are many other symptoms which can occur as a result of a bad TCCM.

Four-wheel drive (4WD) service message

If you see a maintenance or service message on your DIC, it may be something that needs to be fixed. Make sure to turn off the engine and restart it for the message to disappear.

Engine hesitation after taking off

If you are experiencing hesitation or difficulty starting the engine, it may be due to a problem with your transfer case control module. A replacement of this module will fix the issue.

4×4 system not working

Has the 4×4 system been switched on, and does anything appear to be working? If not, it may be a control module issue that needs repair.

In order to diagnose the system, you should check for battery and ignition voltage, as well as the transfer case shift control switch connector and ground circuit for earth. If all circuits are okay, but the transfer case control module fails the test, you will need to replace it.

What Are the Effects of a Faulty Transfer Case Motor?

If your transfer case motor is not functioning properly, it can cause problems with your 4WD system. This can lead to accidents and the noise of the gears grinding or humming.

If you notice a puddle buildup under the transfer case on your car, it’s important to get this issue fixed as soon as possible. This can damage other parts of your car, so it’s best to take care of it right away.

How Is the Transfer Case Shift Motor Tested?

Remove the transfer case shift motor

Raise your vehicle and support it with jack stands. Slide under the vehicle and locate the transfer case motor. It looks like a window motor and it sits on the rear of your transfer case. Remove the bolts holding it in place and unplug the wiring connectors. Remove the transfer case motor, placing it on a table to carry out test procedure

Test the transfer case motor with a test light (Ohm preferably)

The yellow and orange wires on the actuator go into the motor itself. If you have a fault shift motor, you may see readings above 2.7 on these wires. This indicates that there is a problem with the motor and needs to be fixed.

Test the transfer case motor with a battery back

To test the transfer case motor, you can use a car battery or a portable jumper pack. Connect your multimeter leads to your jumper pack terminals and make sure you don’t cross the probes. The goal of this test is to move the gear, so make sure you connect the probes to the orange and yellow wires.

If the reverse gear moves freely but not too much in either direction, then your transfer case shift motor is probably good. However, if reverse doesn’t work at all or moves only in one direction, then it’s time for a replacement shift motor.

Is it Possible to Repair My Own Transfer Case Shift Motor?

If your transfer case shift motor is not working, you may be wondering if there is a way to repair it yourself. The good news is that many times, this can be repaired without any difficulty. The bad news is that there are a few things you need to know before beginning the repair.

READ: Where Does Pcv Valve Hose Go?

The transfer case shift motor helps to change gears in the transfer case, allowing the vehicle to move seamlessly between two-wheel drive and four-wheel drive.

If the motor in your transfer case does not work properly, it can cause the gears to become stuck, making it difficult or impossible to change gears.

If you are confident in your ability to repair small engines and motors, then it is likely that you can fix the problem yourself. The first step is to remove the cover of the motor and inspect it for damage. If there is damage, you will need to replace the motor.

If the motor looks okay, inspect the wiring for any signs of damage or corrosion.

If the wiring is intact and the connector terminals are clean, you may need to replace the connector. If this is not an option or if repairs do not solve the problem, it is likely that a more serious issue exists and requires replacement of one or more parts.

If the problem persists even after following the troubleshooting steps, you may need to take your device to a mechanic for further diagnosis and repair.

If you are having trouble repairing your transfercase shift motor, it may be a good idea to consult a professional. Repairing this yourself can be challenging, but can save you money in the long run.

Transfer Case Shift Motor Replacement

If you determine that the transfer case shift motor is bad, it will need to be replaced. A new one can often be found at a dealership or online. It’s a relatively easy task and can often be done without removing the transfer case from the vehicle.

Your vehicle’s shift motor may need to be replaced, so you’ll want to consult your owner’s manual or call a technician for assistance. The process of replacing the shift motor in most cases is fairly straightforward, but it will vary depending on the make and model of your vehicle.

Once the old shift motor is removed, the new one can be installed in its place. Simply reconnect the wires and bolt them in place. Then reattach the cover to the transfer case and you’re ready to go.

F.A.Q about “what are the symptoms of a bad transfer case motor”

What happens when transfer case motor goes bad?

If the transfer case fails during operation, it may cause the vehicle to be left in neutral or the transfer case may bind. If the transfer case is malfunctioning electronically, it can cause erratic shifts from high to low gear and from two-wheel drive to four-wheel drive.

Can you drive with a bad transfer case motor?

Yes, you can drive with a broken transfer case. However, we strongly discourage operating a car with a damaged transfer case. It is not safe and could cause further damage to the vehicle.

What does a transfer case shift motor do?

The transfer case shift motor helps to move the internal shift levers that make 4WD work.

How much does a transfer case motor cost?

Transfer case motors can cost anywhere from $175 to $325, but on average they cost around $200.

What sound does a bad transfer case make?

If you hear strange noises coming from your vehicle’s transfer case or under it, these could mean there is a problem with it. Grinding, chattering, and clicking can all be signs of a bad transfer case.

Conclusion

By checking these three components, you can determine if the transfer case motor is working properly. If the transfer case motor is not working properly, you may experience a number of symptoms. Be sure to check your transfer case motor to ensure that it is working properly.
